Parker Balston Inline Air Filter – Infusion Pro Series

Protect your Infusion Pro Series air system with the Parker Balston Inline Air Filter. Installed between the air supply and dispensing components, this disposable filter helps remove fine particles, oil aerosols, and water droplets from the compressed-air line.

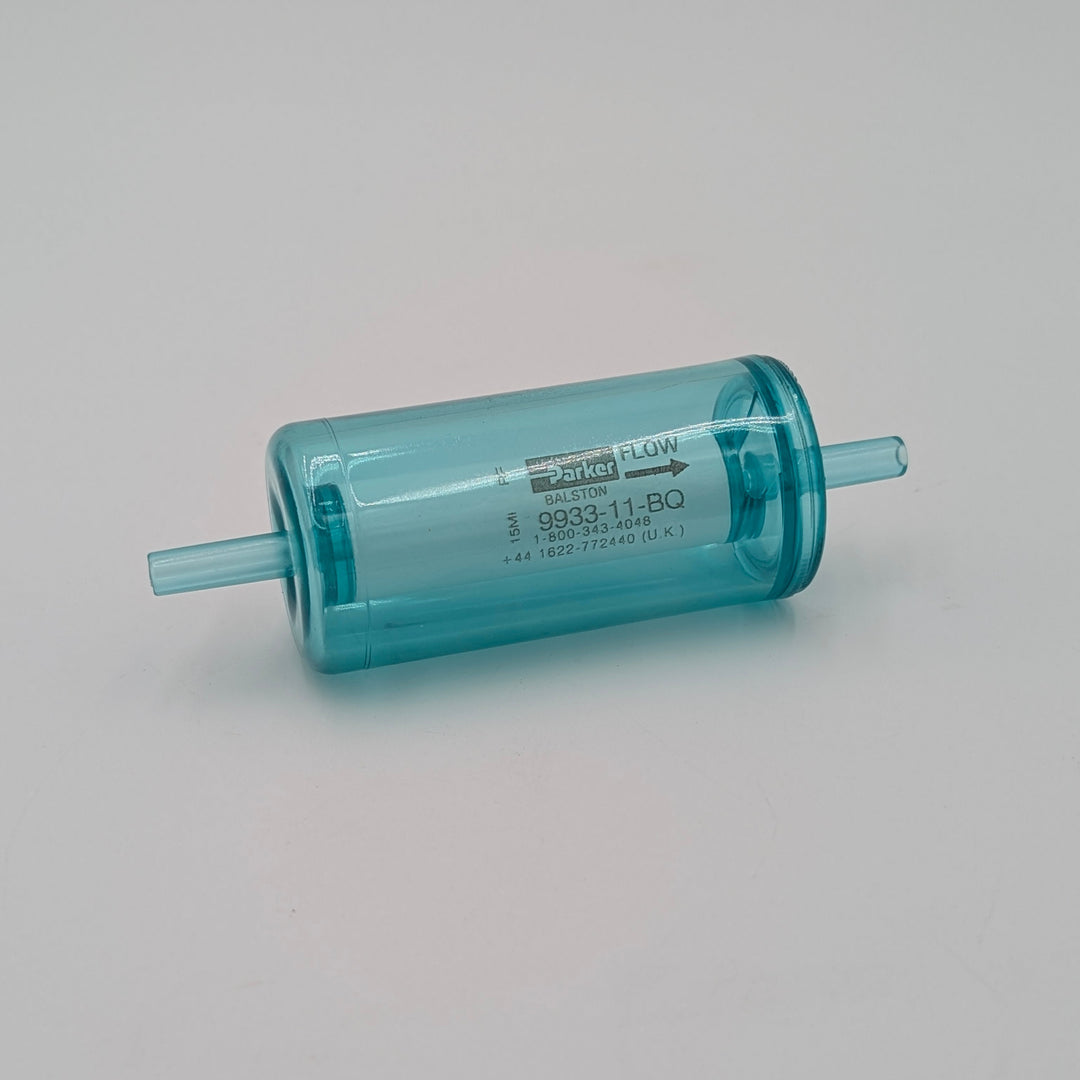

The Parker Balston 9933-11-BQ uses a borosilicate glass microfiber filter inside a transparent nylon housing. Its inline design makes it easy to inspect and replace during routine system maintenance.

This filter provides 99.99% retention efficiency at 0.01 micron in gas service. This rating describes filtration efficiency and should not be interpreted as a nominal 0.01-micron pore size

nstallation and Maintenance

Install the filter with airflow moving in the direction of the arrow printed on the housing.

Inspect the filter at least once every six months for visible contamination, moisture buildup, damage, or restricted airflow. Under normal Infusion Pro Series operating conditions, the filter should typically be replaced every 12 to 18 months.

Actual filter life can vary depending on air quality, operating conditions, system usage, and compressor maintenance. Replace the filter sooner if contamination, moisture accumulation, physical damage, reduced airflow, or declining system performance is observed.
