8-Inch Stainless Steel Wall Mount Beer Drip Tray w/ Rinser

Name: 8-Inch Stainless Steel Wall Mount Beer Drip Tray w/ Rinser
Brand: Quality Equipment
SKU: DTWM24SS-8R
Price: 378.0 USD
Availability: InStock

Stainless steel wall mount beer drip tray with multiple faucet holes and a circular glass rinser at the bottom

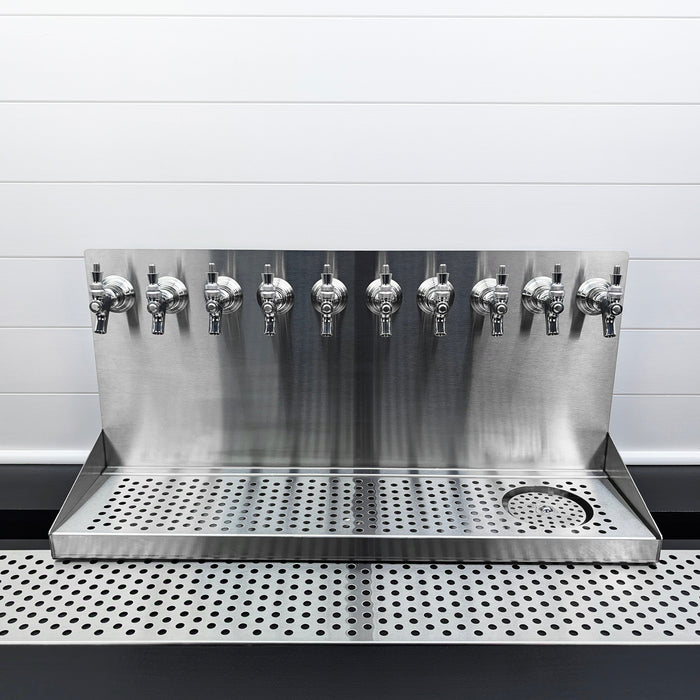

10 Faucet Wall Mount Dispenser with Rinser

In stock, ready to ship
Backordered, shipping soon

$378.00

Shipping calculated at checkout.

Size of Wall Trays

8" x 24" Wall Tray (up to 8 holes)

8" x 30" Wall Tray (up to 10 holes)

8" x 36" Wall Tray (up to 12 holes)

8" x 48" Wall Tray (up to 15 holes)

8 x 60" Wall Tray (up to 20 holes)

8" x 60" Wall Tray 2 Rinsers (up to 20 holes)

8" x 76" Wall Tray (up to 25 holes)

8" x 76 Wall Tray 2 Rinsers (up to 25 holes)

Keep Your Draft Station Clean with This 8-Inch Wall-Mount Drip Tray and Rinser

Rinse, pour, and serve with confidence using our compact 8" wall-mounted drip tray—now upgraded with a built-in glass rinser for quick, efficient bar service. Perfect for tight installations where performance still matters, this tray keeps your space clean and your glassware ready between pours.

Made from premium 304 brushed stainless steel, it features welded and polished seams for a clean, seamless finish. The wall-mount design saves counter space, while the integrated rinser adds convenience for high-volume beverage stations. Customizable faucet hole configurations ensure a precise fit for your draft setup.

** Faucets not included with drip tray.

Premium Stainless Steel Construction: Built from high-quality 304 stainless for durability and a polished, professional look.
Wall Mount Design: Saves counter space and installs easily—perfect for compact or high-traffic areas.
Efficient Liquid Management: Perforated tray surface catches spills and drips, keeping your bar clean.
Easy to Clean: Removable tray allows for fast, thorough cleaning.
Integrated Rinser: Built-in rinser allows you to refresh glassware quickly for a cleaner, crisper pour.
Hole Configuration: Specify the number of faucet holes at no extra cost—see product page for size and hole limits.
Versatile Use: Ideal for bars, breweries, coffee shops, soda stations, and other beverage applications.
American Made: Tray proudly designed, manufactured, and assembled in the USA.

Dimensions: 14.5" (T) x 8" (W) x 3/4" (D)
Material: 304 Brushed Stainless Steel
Mounting Type: Wall Mount – pre-drilled for easy installation
Faucet Holes:
• Specify number of holes at no additional charge
• Standard spacing: 3" between holes
• Max faucet holes by tray size:
– 24" Tray: Up to 8 holes
– 30" Tray: Up to 10 holes
– 36" Tray: Up to 12 holes
– 48" Tray: Up to 15 holes
– 60" Tray: Up to 20 holes
– 76" Tray: Up to 25 holes
Rinser: Integrated glass rinser with 1/2" BSP male fitting
Finish: Welded and polished seams for a seamless, clean appearance
Drain(s):
• Centered drain included
• 60" and 76" trays come with two drains
Country of Origin: Made in the USA

Shipping costs are calculated during checkout based on the size, weight and delivery destination of your order. Our system uses real-time rates to provide accurate and fair shipping costs tailored to your purchase. This allows us to offer transparent pricing, ensuring you only pay for what is necessary.

Our products are delivered US wide.

[{"id":42800449814582,"title":"8\" x 24\" Wall Tray (up to 8 holes)","option1":"8\" x 24\" Wall Tray (up to 8 holes)","option2":null,"option3":null,"sku":"DTWM24SS-8R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"8-Inch Stainless Steel Wall Mount Beer Drip Tray w\/ Rinser - 8\" x 24\" Wall Tray (up to 8 holes)","public_title":"8\" x 24\" Wall Tray (up to 8 holes)","options":["8\" x 24\" Wall Tray (up to 8 holes)"],"price":37800,"weight":6804,"compare_at_price":null,"inventory_management":null,"barcode":"DTWM24SS-8R","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42800449847350,"title":"8\" x 30\" Wall Tray (up to 10 holes)","option1":"8\" x 30\" Wall Tray (up to 10 holes)","option2":null,"option3":null,"sku":"DTWM30SS-8R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"8-Inch Stainless Steel Wall Mount Beer Drip Tray w\/ Rinser - 8\" x 30\" Wall Tray (up to 10 holes)","public_title":"8\" x 30\" Wall Tray (up to 10 holes)","options":["8\" x 30\" Wall Tray (up to 10 holes)"],"price":42350,"weight":7711,"compare_at_price":null,"inventory_management":null,"barcode":"DTWM30SS-8R","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42800449880118,"title":"8\" x 36\" Wall Tray (up to 12 holes)","option1":"8\" x 36\" Wall Tray (up to 12 holes)","option2":null,"option3":null,"sku":"DTWM36SS-8R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"8-Inch Stainless Steel Wall Mount Beer Drip Tray w\/ Rinser - 8\" x 36\" Wall Tray (up to 12 holes)","public_title":"8\" x 36\" Wall Tray (up to 12 holes)","options":["8\" x 36\" Wall Tray (up to 12 holes)"],"price":57150,"weight":9072,"compare_at_price":null,"inventory_management":null,"barcode":"DTWM36SS-8R","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42800449912886,"title":"8\" x 48\" Wall Tray (up to 15 holes)","option1":"8\" x 48\" Wall Tray (up to 15 holes)","option2":null,"option3":null,"sku":"DTWM48SS-8R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"8-Inch Stainless Steel Wall Mount Beer Drip Tray w\/ Rinser - 8\" x 48\" Wall Tray (up to 15 holes)","public_title":"8\" x 48\" Wall Tray (up to 15 holes)","options":["8\" x 48\" Wall Tray (up to 15 holes)"],"price":59950,"weight":11340,"compare_at_price":null,"inventory_management":null,"barcode":"DTWM48SS-8R","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42800449945654,"title":"8 x 60\" Wall Tray (up to 20 holes)","option1":"8 x 60\" Wall Tray (up to 20 holes)","option2":null,"option3":null,"sku":"DTWM60SS-8R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"8-Inch Stainless Steel Wall Mount Beer Drip Tray w\/ Rinser - 8 x 60\" Wall Tray (up to 20 holes)","public_title":"8 x 60\" Wall Tray (up to 20 holes)","options":["8 x 60\" Wall Tray (up to 20 holes)"],"price":74050,"weight":13608,"compare_at_price":null,"inventory_management":null,"barcode":"DTWM60SS-8R","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42800449978422,"title":"8\" x 60\" Wall Tray 2 Rinsers (up to 20 holes)","option1":"8\" x 60\" Wall Tray 2 Rinsers (up to 20 holes)","option2":null,"option3":null,"sku":"DTWM60SS-8R2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"8-Inch Stainless Steel Wall Mount Beer Drip Tray w\/ Rinser - 8\" x 60\" Wall Tray 2 Rinsers (up to 20 holes)","public_title":"8\" x 60\" Wall Tray 2 Rinsers (up to 20 holes)","options":["8\" x 60\" Wall Tray 2 Rinsers (up to 20 holes)"],"price":85050,"weight":14515,"compare_at_price":null,"inventory_management":null,"barcode":"DTWM60SS-8R2","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42800450011190,"title":"8\" x 76\" Wall Tray (up to 25 holes)","option1":"8\" x 76\" Wall Tray (up to 25 holes)","option2":null,"option3":null,"sku":"DTWM76SS-8R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"8-Inch Stainless Steel Wall Mount Beer Drip Tray w\/ Rinser - 8\" x 76\" Wall Tray (up to 25 holes)","public_title":"8\" x 76\" Wall Tray (up to 25 holes)","options":["8\" x 76\" Wall Tray (up to 25 holes)"],"price":101100,"weight":17237,"compare_at_price":null,"inventory_management":null,"barcode":"DTWM76SS-8R","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42800450043958,"title":"8\" x 76 Wall Tray 2 Rinsers (up to 25 holes)","option1":"8\" x 76 Wall Tray 2 Rinsers (up to 25 holes)","option2":null,"option3":null,"sku":"DTWM76SS-8R2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"8-Inch Stainless Steel Wall Mount Beer Drip Tray w\/ Rinser - 8\" x 76 Wall Tray 2 Rinsers (up to 25 holes)","public_title":"8\" x 76 Wall Tray 2 Rinsers (up to 25 holes)","options":["8\" x 76 Wall Tray 2 Rinsers (up to 25 holes)"],"price":115000,"weight":18144,"compare_at_price":null,"inventory_management":null,"barcode":"DTWM76SS-8R2","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

FAQs

Match the tray length to the number of faucets in your tower or wall. As a rule of thumb, allow 3 inches of tray width per faucet. Our 8"x36" (up to 12 holes) is the most popular for home and small-bar setups; the 8"x60" with two rinsers is the go-to for high-volume taprooms. Not sure? Call QDS, and we will help you size your space.

The wall mount drip tray includes the stainless body, hardware, and the integrated rinser plumbing fitting. Faucets, shanks, and the drain line are sold separately. We can bundle them on request and just send a quote request.

The drip tray uses a standard 1/2" NPT drain fitting. The rinser inlet is 1/4" push-to-connect for cold water. We can supply a complete plumbing kit if needed.

Yes. We custom-fabricate trays in our Missouri shop. Send your faucet count, spacing, and any cutout requirements and we'll quote a custom build, typically within one business day. We can also quote you on powder-coating your drip tray.

In-stock sizes ship within 2–3 business days. Custom configurations ship in 2–3 weeks. You'll get tracking the moment it leaves our facility.

All Quality Draft Solutions trays carry a 1-year warranty against manufacturing defects. Stock items can be returned within 30 days unused; custom builds are non-returnable.

Absolutely. All our products come with access to our team of experts by chat, email, or phone to answer any installation questions you might have.
